ARC Performance 12V DC Electric Compressor, R134a.
This compressor can be mounted just about anywhere in your vehicle as there is no need for a belt or mechanical drive!
You can mount these compressors in an engine bay, a boot / trunk, under a tray of a ute / pickup or truck!
You will need a decent alternator with an output of at least 120A and up (depending on what you are already running electrically, as you will need to take this into account), to manage the 50 Amp current draw that this compressor will require at its full speed rated at 1800 rpm.

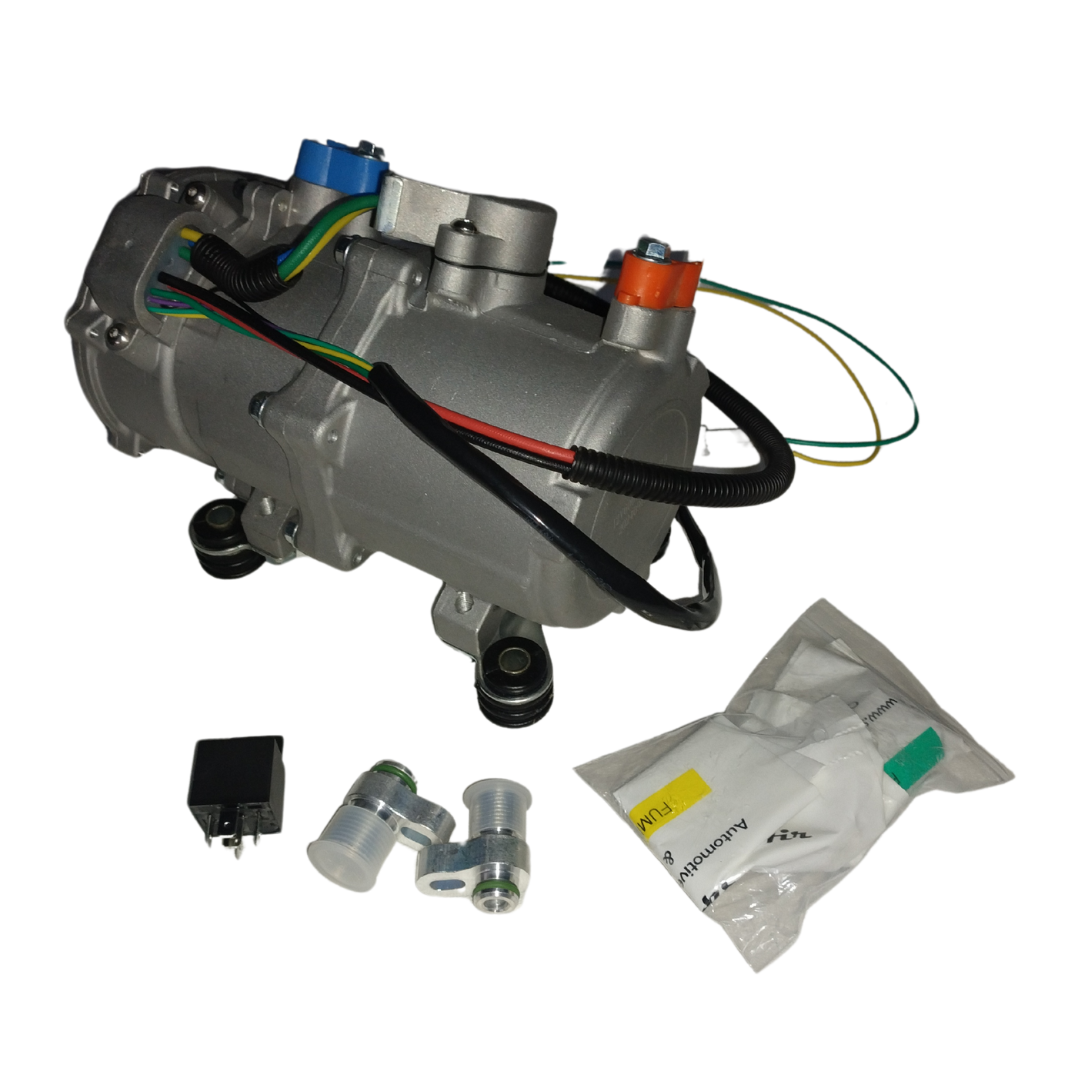

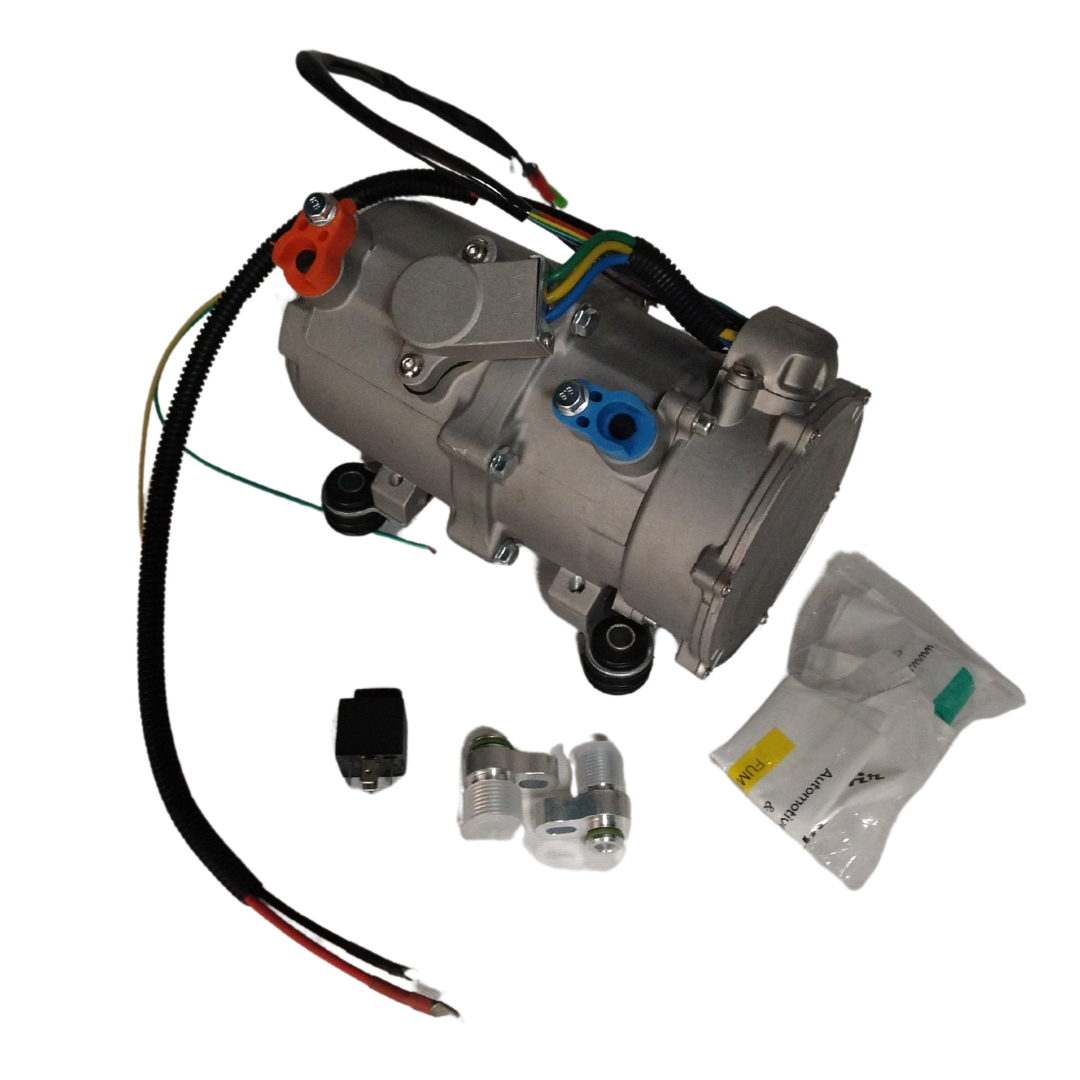

Included in kit:
- Electric compressor
- Set of Suction & Discharge pad to MIOR adaptors to allow the use of standard FOR screw on fittings:
Discharge is #8, Suction is #10
- 100A midi fuse and holder
- Mini relay
Controlling the compressor
Using the vehicles air conditioning thermostat located in the factory evaporator box / under dash unit to trigger the mini relay.
Wiring diagram will be supplied with compressor and accessible via instructions tab.
Powering the compressor
You will require the following item:
- 6 B&S Cable per metre depending on where you mount the compressor
Overall approx compressor dimensions:
- Width 130mm
- Length 235mm
- Height 190mm
VERY IMPORTANT *COMPRESSOR HAS TO BE MOUNTED AS IN PHOTOS WITH THE MOUNTING POINTS OT THE UNDERSIDE OF THE COMPRESSOR, THIS CAN NOT VARY OTHERWISE COMPRESSOR WILL SUSTAIN DAMAGE OR FAIL*
