Black Dial 6 Gauge Set, Pulse Speedo

ARC Performance Black Dial 6 Gauge Kit With Programmable Pulse Speedometer.

Features:

• Electronic programmable gauges with Black dial and stainless bezel
• Indicators and high beam lights are built into the speedo, eliminating the need for extra dash lights
• Speedometer uses electronic speed input (gearbox sender/ECU output)
• Suitable for 12 or 24 volt applications
• Programmable mileage and digital odometer
• Over-speed buzzer – selectable warning speed can be set
• Water and dust proof – IP67 water resistance rating – perfect for exposed dash boards
• Red or yellow backlighting
• All wiring supplied with gauges
• Compatable with most aftermarket senders

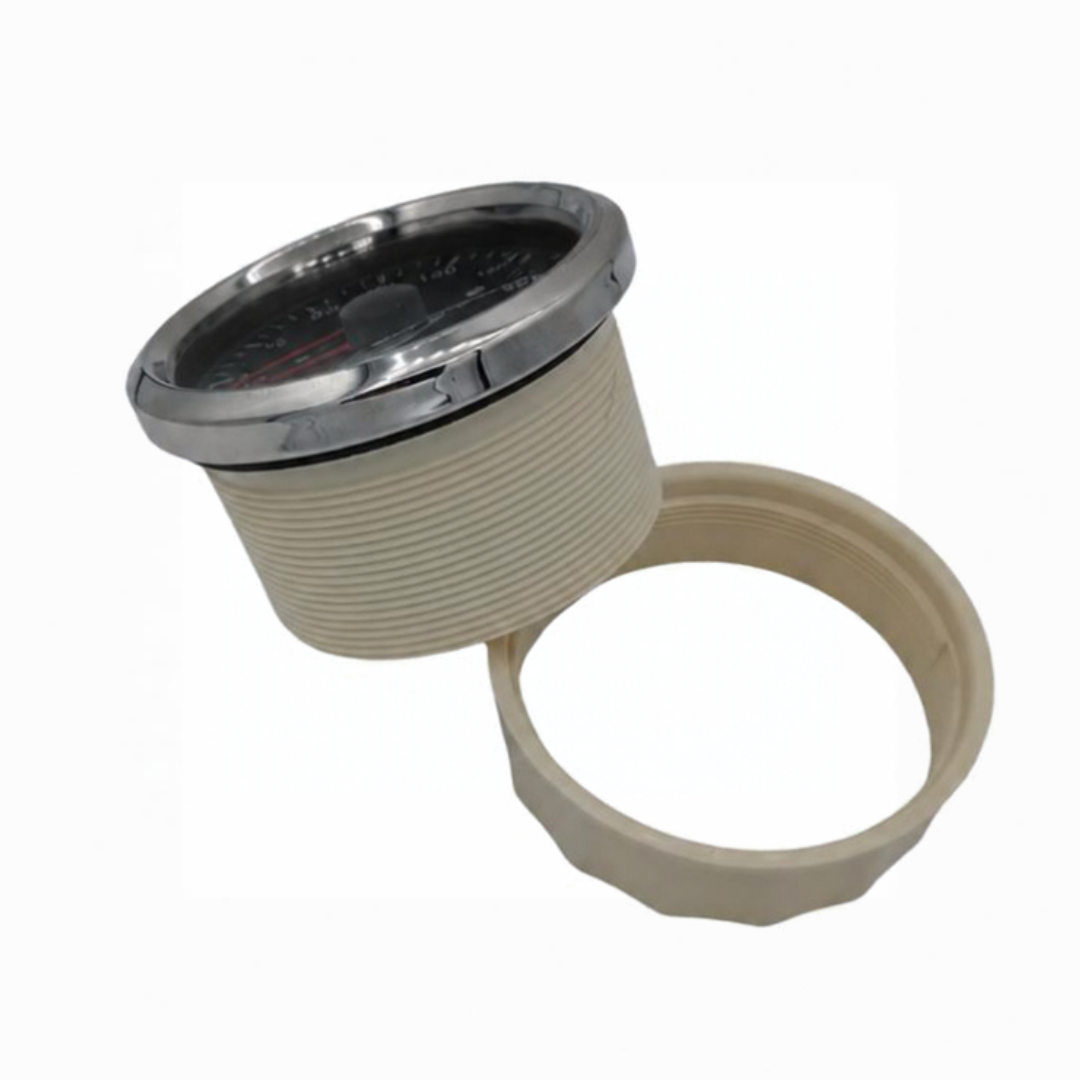

All gauges feature a screw fastener nut to hold in place – easy install with no fiddly u-bolts!

Ohms ranges:

• Fuel gauge: 10-180 ohm
• Oil pressure gauge: 10-185 ohm
• Water temp gauge: 287-23 ohm

Kit Includes:

• 1 x 3-3/8 inch (85mm) speedometer
• 1 x 3-3/8 inch (85mm) tachometer
• 4 x 2-1/16 inch (52mm) – oil pressure, engine coolant temperature, volts, and fuel level gauges
• Oil pressure and temperature senders
• Wiring
• Comprehensive instructions

We also offer 5 gauge kits if a tachometer is not required!

New Classic, Vintage beige or white dial kits are also available!

An ohms converter may be required for your specific fuel level sender.

Due to the many options possible with pulse sender units and the many gearbox options available,
a pulse sender is not supplied with this kit.
