Firewall Mount Brake Pedal Assembly, Auto, Suit Hot Rod Ford Chev

ARC Performance Firewall Mount Brake Pedal Assembly.

• Mounts under dash to firewall with adjustable design
• To suit firewall mount booster or master cylinder
• Designed for manual or power booster brakes
• Pre-drilled with master cylinder and booster bolt patterns

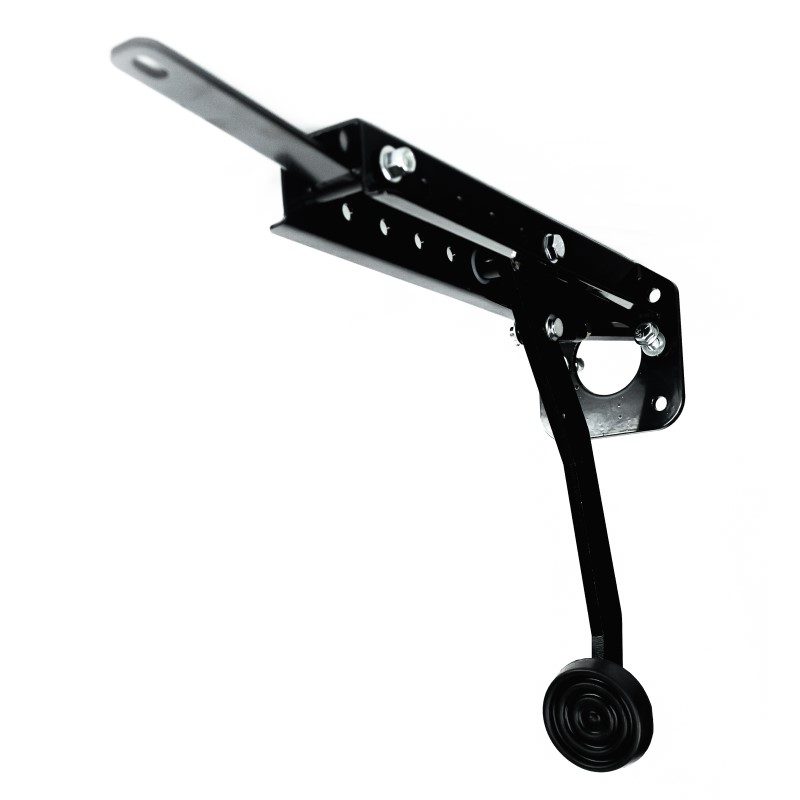

• Professionally made with black powdered coated finish (as per main pic)
• Includes round rubber pedal pad
• Bolt patterns suit our booster and master cylinder range plus most aftermarket brands
• Suit automatic set ups only

Dimensions:

• 3-3/8 inch square booster mounting pattern – suits most after market boosters
• 3-3/8 inch centre to centre bolt holes for master cylinder mount (manual brakes)
• Pedal pivot point at 150mm, 188mm, 226mm, 264mm, 302mm from the firewall
• W = 50mm, H = 80mm, overall length = 360mm (can be shortened)
• Firewall mounting face 140mm H x 125mm W
• Pedal is 345mm long from pivot point
