**Due Late August** Ford 9 Inch 35 Spline 1541H Billet Axle Kit – Screw In 5/8″ Studs + Bearing, 32″ Cut To Size

ARC Performance Ford 9 Inch 35 Spline “Cut To Fit” 32 Inch Axle Kit.

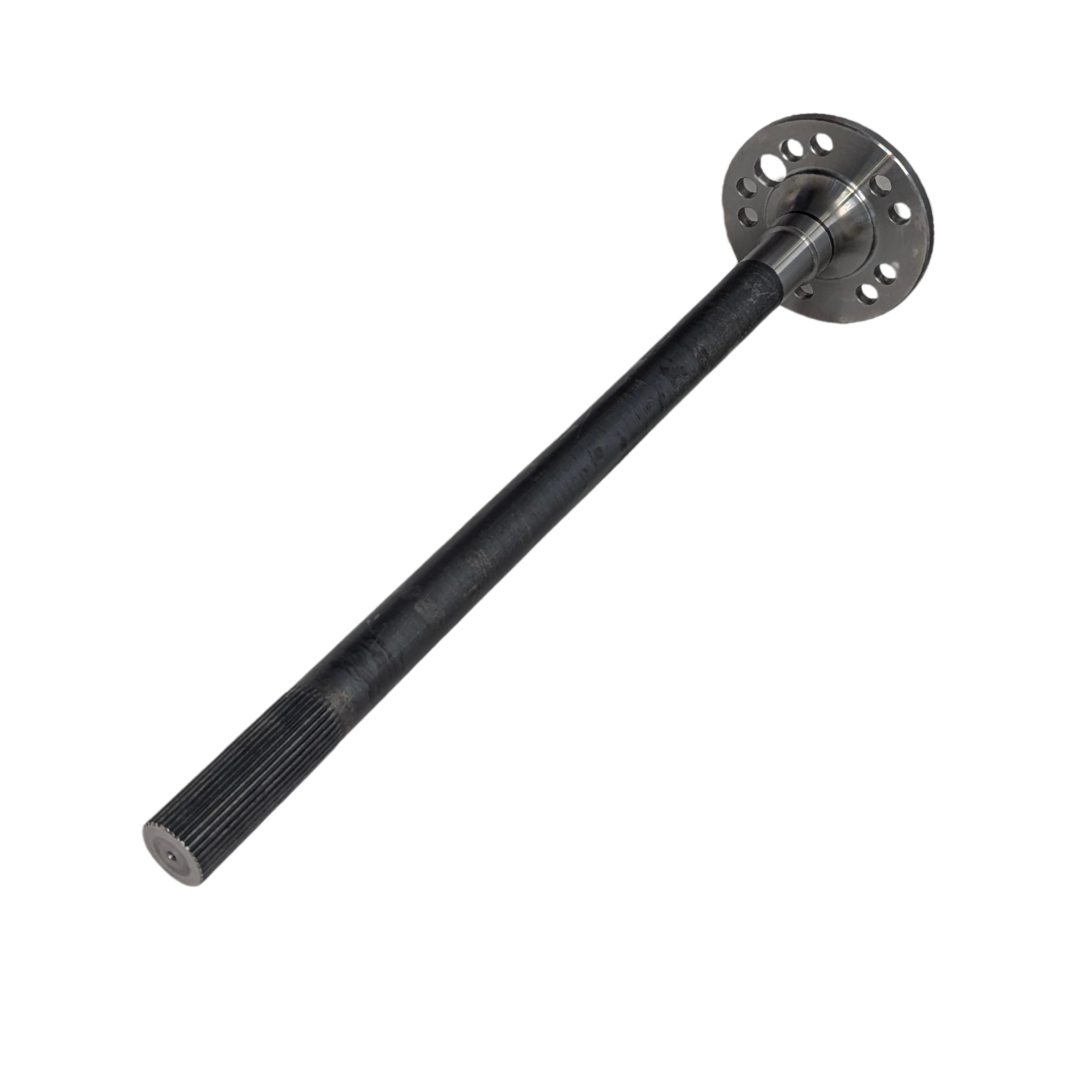

The ARC Performance Ford 9” cut to fit axles will allow you to build your own custom width rear end easily. They are made with 4 inches (101.6mm) of spline designed to be cut to size for use in 9 inch diff building and conversions.

SOLD AS ONE AXLE ONLY.

Axles are measured from outside face of flange to the very end of the axle.

This listing is for the 32 inch length – 23 inch, 26 inch & 29 inch sizes are also available.

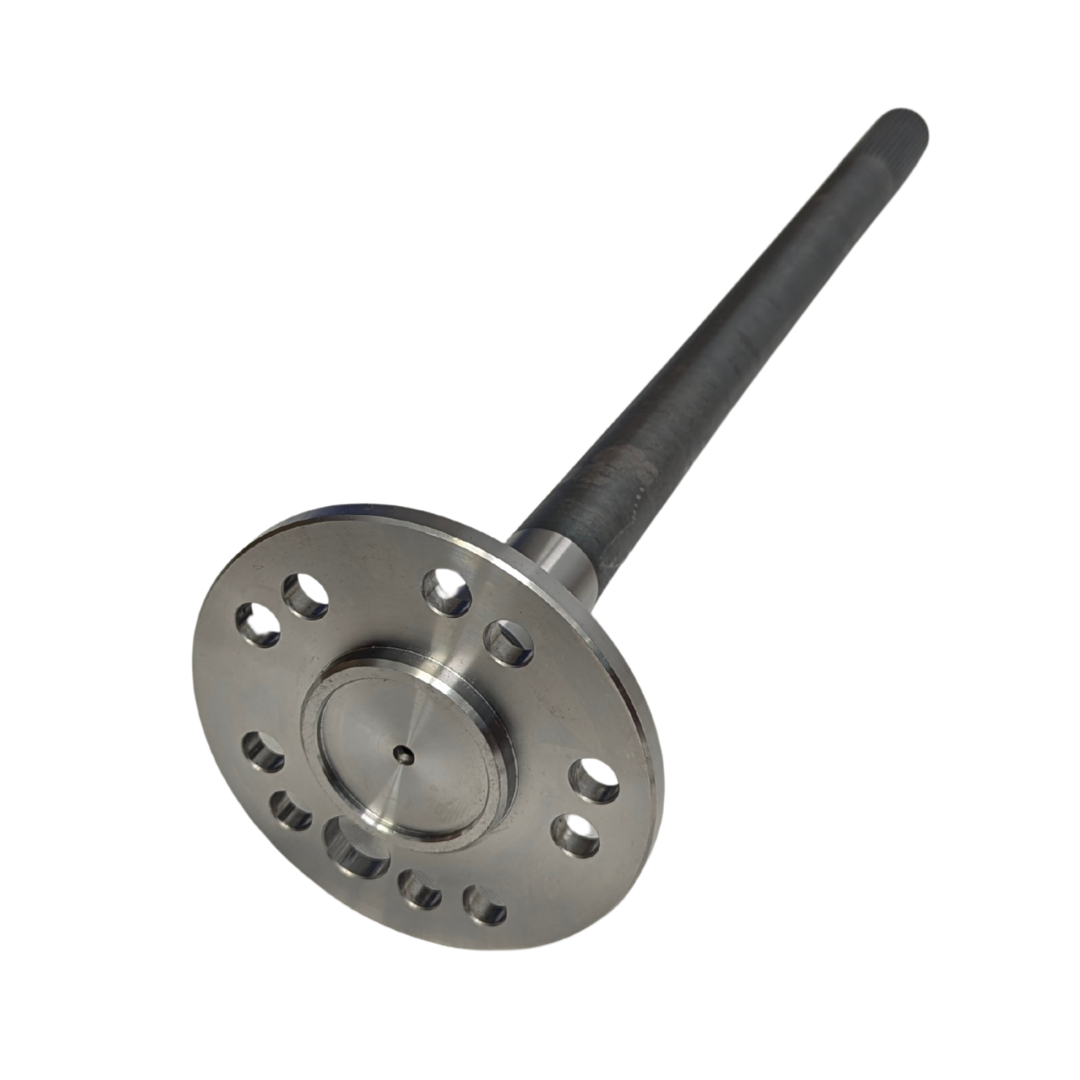

• 35 spline 1541H billet axle – Forged and Induction Heat Treated
• Machined to suit 1.564 inch Ford Large Bearing
• Machined Ford (5 x 4.5 inch) and Chev (5 x 4.75 inch) bolt patterns
• Threaded for 5/8-18 screw-in studs

Axle Measurements:

• Length: 32 inch
• Bearing Journal: 1.564 inch (39.71mm)
• Axle Offset: suit 2.5 inch brake offset (63.5mm)
• Flange Diameter: 158mm
• Drum/Rotor Pilot diameter: 70.8mm

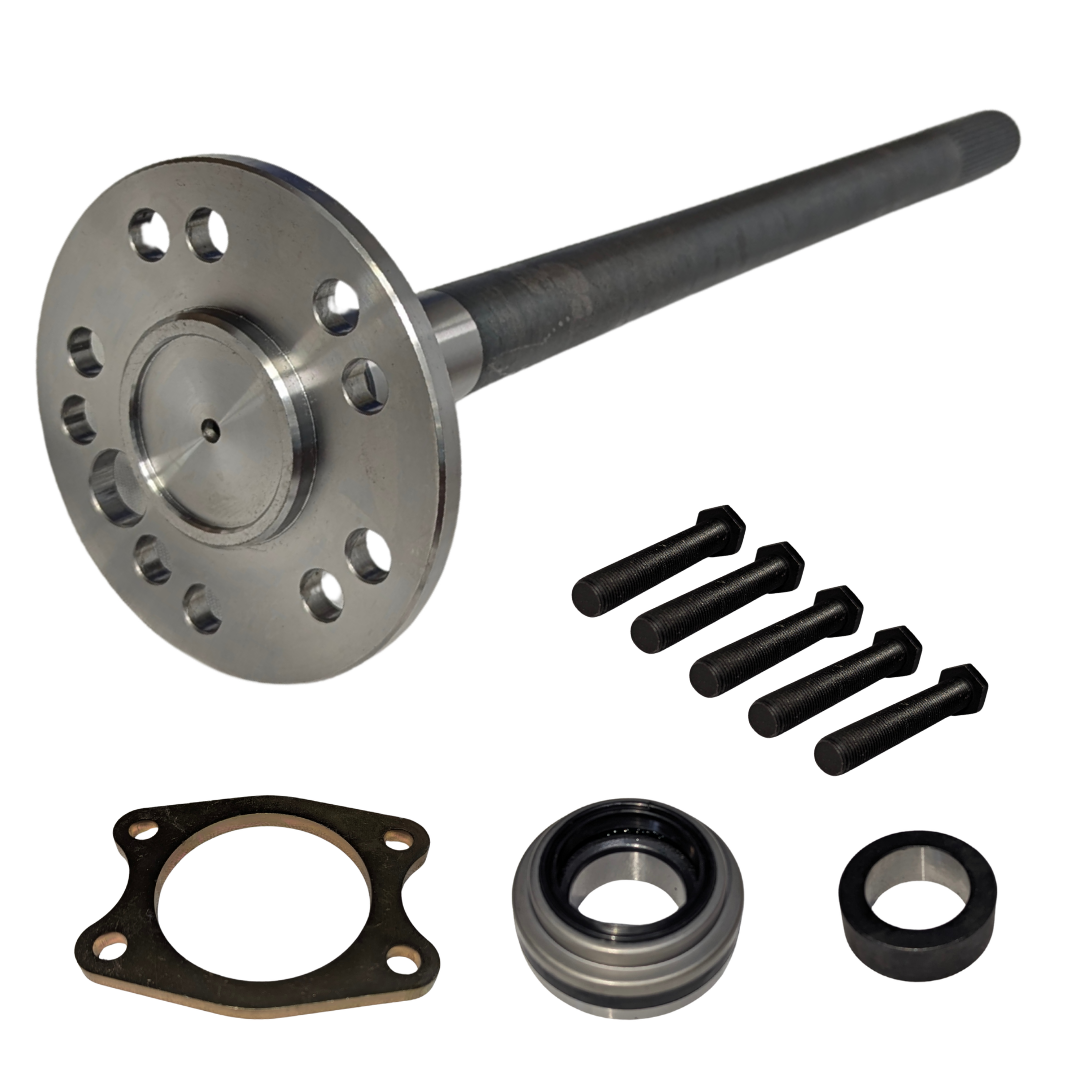

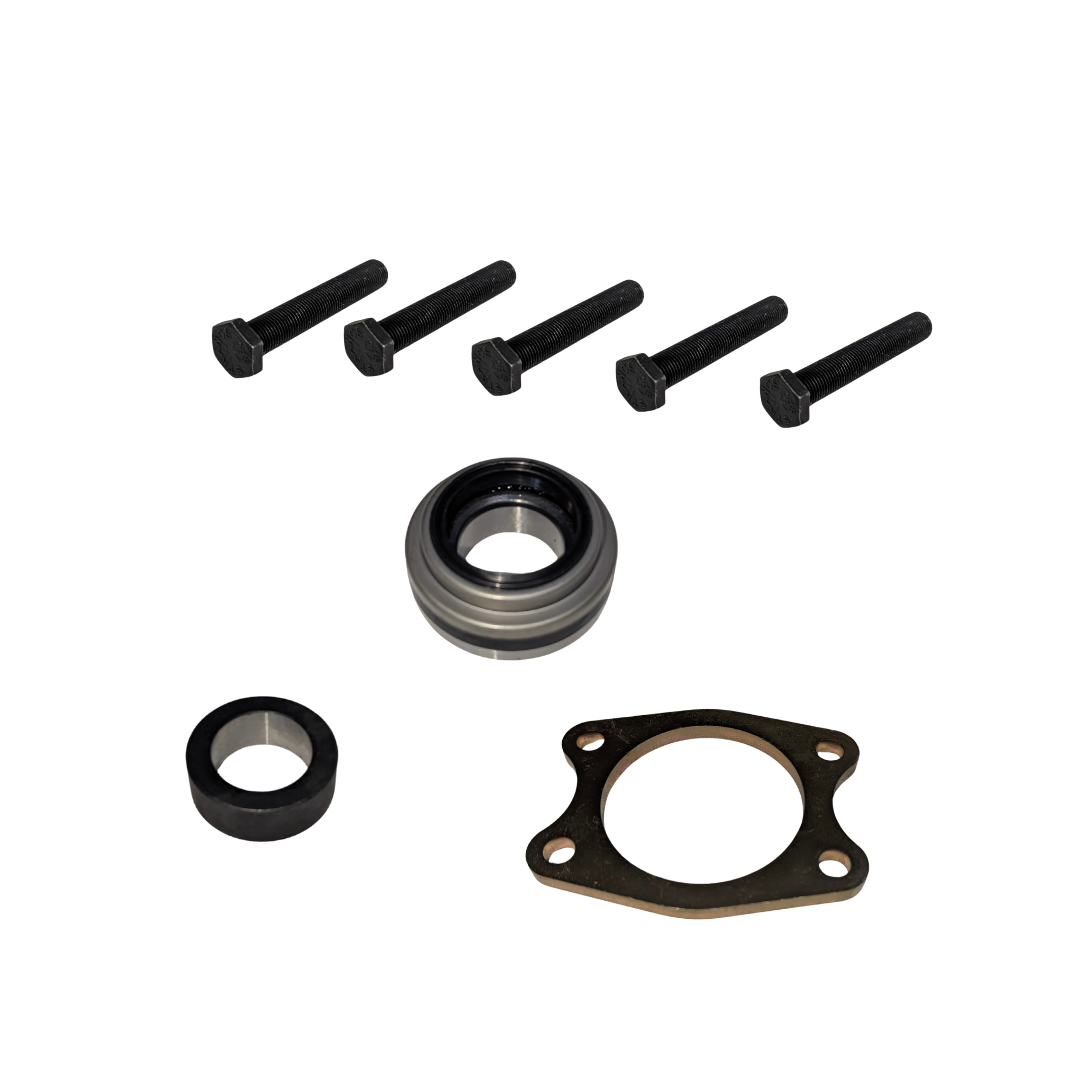

Kit Includes:

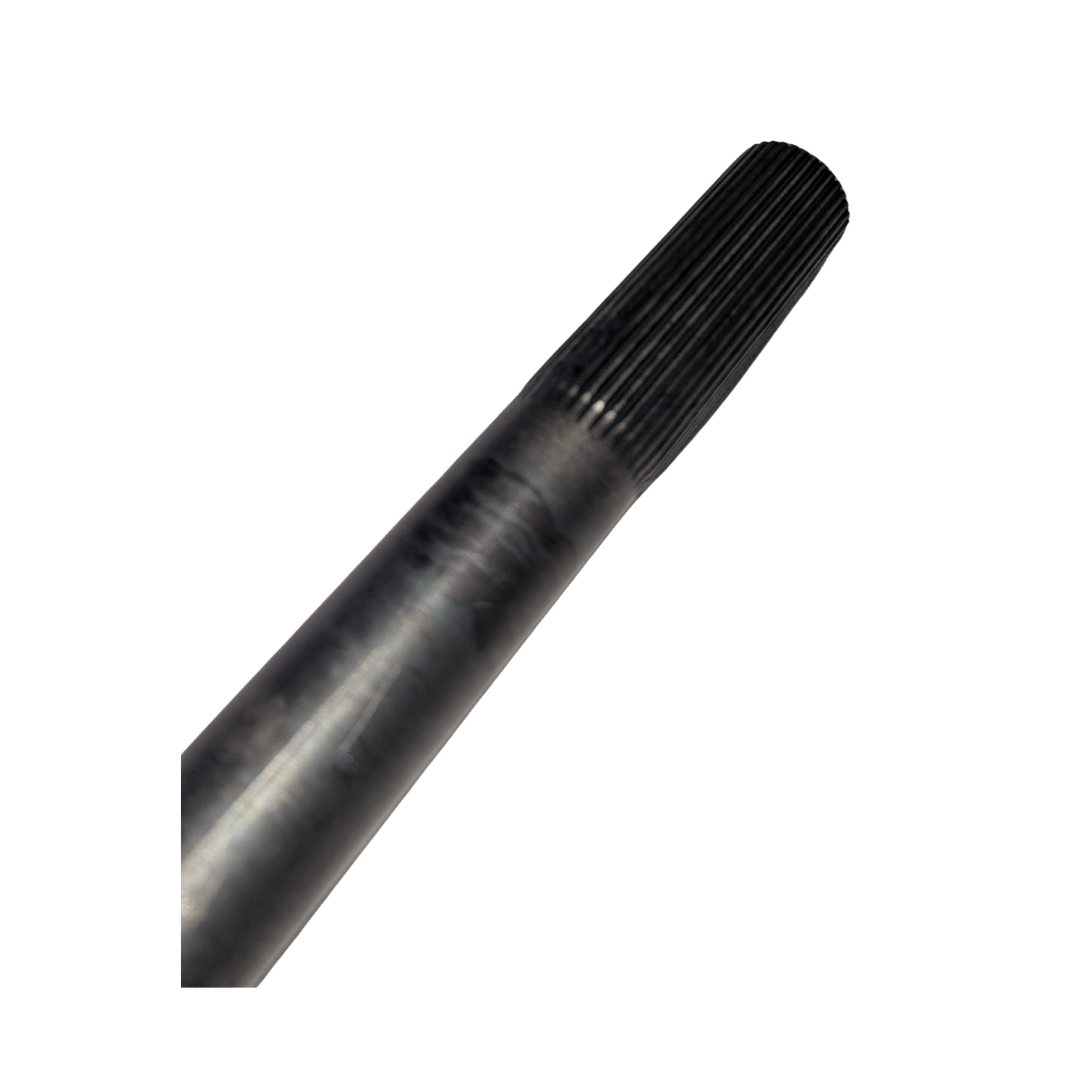

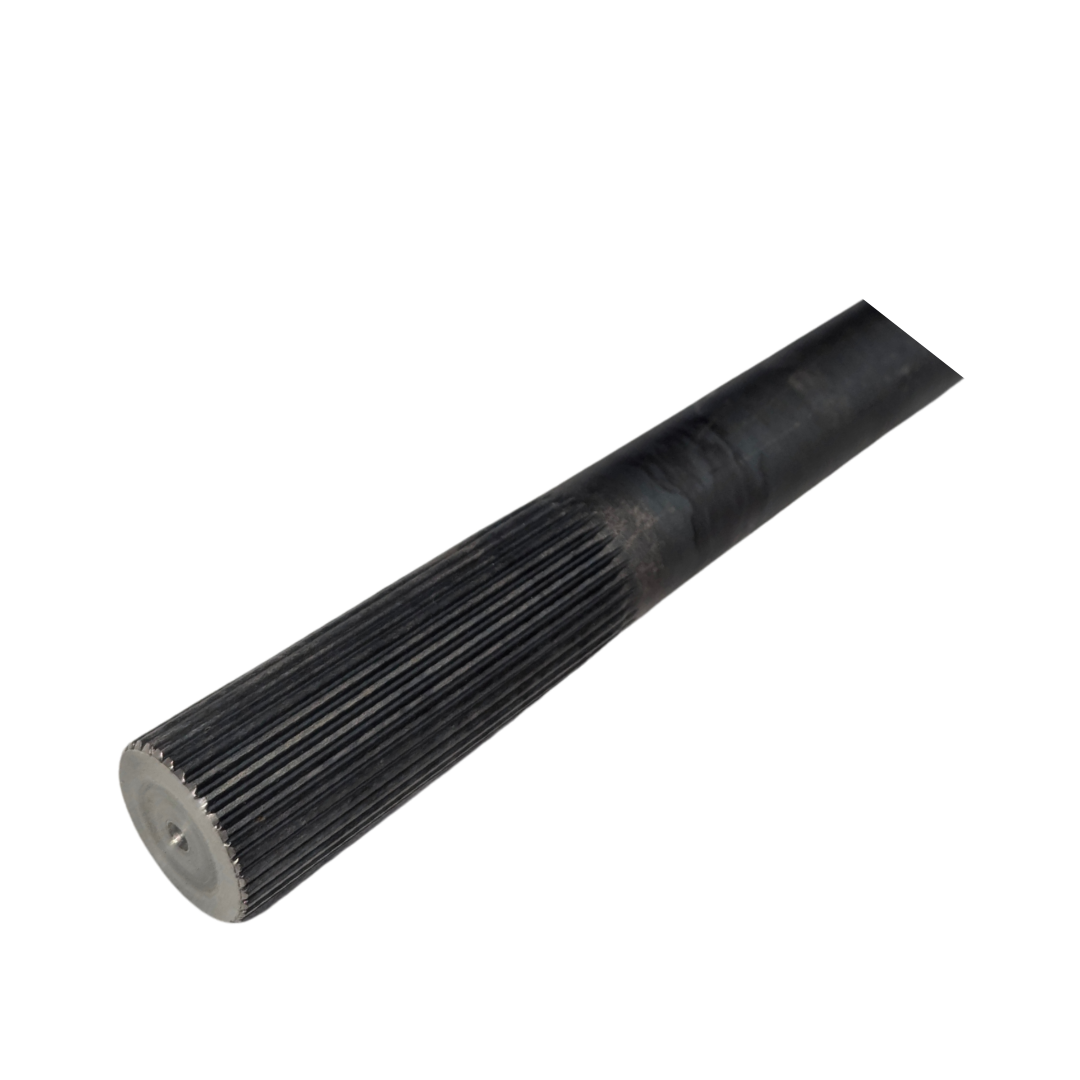

• 1 x Axle with 4 inch (101.6mm) of spline
• 1 x Set20 1.564″ ID, 3.150″ OD roller taper bearing, lockring and seal
• 1 x set of 5/8″ screw-in studs (5)
• 1 x bearing retainer plate to suit Big Ford New Style Ends

Bearing and Stud Installation is done by purchaser.
