Ford Windsor 289 302 351 Aluminium Cylinder Heads Arc Sbf 170 1 8x8

Ford Windsor 289 302 351 Aluminium Cylinder Heads COMPLETE Including Roller Rockers, 170cc Intake Runner

SKU: ARC-SBF-170CC-RR

$1,995.00

Heads sold as a pair and fully assembled

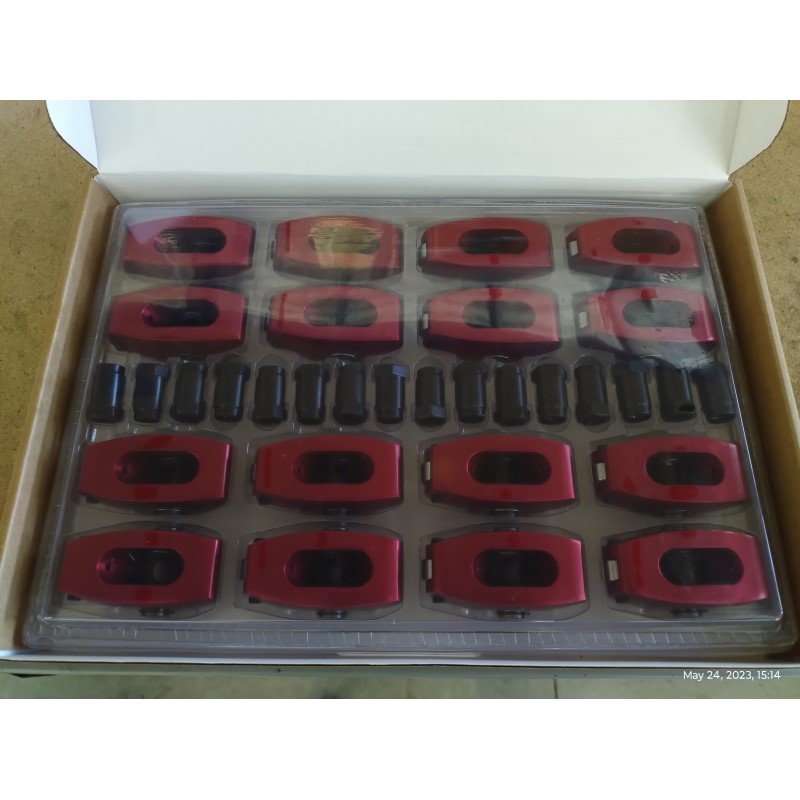

Includes roller rockers
Direct bolt-on heads deliver maximum performance in the 1500-6500 RPM range

NO Free Postage due to the weight of this item

Payment options

Out of stock: "Roller Rockers", "Ford Windsor 289 302 351 Aluminium Cylinder Heads COMPLETE, 170cc Intake Runner" do not have sufficient quantity in stock.

Add to WishlistAlready In Wishlist

Join the waitlist to be emailed when this product becomes available

Enter your email address to join the waitlist for this product

Need help?

Ask a question about this item

General Specs

Part # ARC-SBF-170CC-RR
Rockers Included Yes
Rocker Type Roller
Rocker Ratio 1.6
Sold Quantity Pair

Intake Lift

0.100 CFM: 73.00
0.200 CFM: 129.00
0.300 CFM: 184.00
0.400 CFM: 219.00
0.500 CFM: 246.00
0.600 CFM: 256.00

Exhaust Lift

0.100 CFM: 58.00
0.200 CFM: 105.00
0.300 CFM: 142.00
0.400 CFM:164.00
0.500 CFM: 171.00
0.600 CFM: 174.00

Head Specifications

Material A356 Aluminium
Chamber Size 60cc
Intake Port CC 170cc
Intake Port Size 29mm x 51mm
Exhaust Port CC 60cc
Exhaust Port Size 32mm x 34mm
Valve Guide Manganese Bronze
Rocker Stud Thread 7/16-14
Valve Angle 20 Deg
Deck Thickness 0.625"
Max Valve Lift 0.550"
Pushrod Size 5/16"
Valve Job 3 Angle

Valve Specifications

Intake Valve 2.02" x 4.915" x 0.342"
Exhaust Valve 1.60" x 4.915" x 0.342"
Valve Seal Viton
Collets 7 Deg - Single Groove

Valve Spring Specifications

Diameter 1.460"
Style Single w/ damper

Pressures

Installed 1.800" 125LB
Open 1.250" 325LB

Recommended Torque Specs - Head Bolts

Short 7/16" 70 FT/LB
Long 7/16" 80 FT/LB
Short 1/2" 100 FT/LB
Long 1/2" 110 FT/LB

Recommended Extras

Head Bolts ARP154-3605 (7/16")
ARP1543603 (1/2")
Head Studs ARP154-4003 (1/2")
Spark Plugs CHAMPION RC12YC
