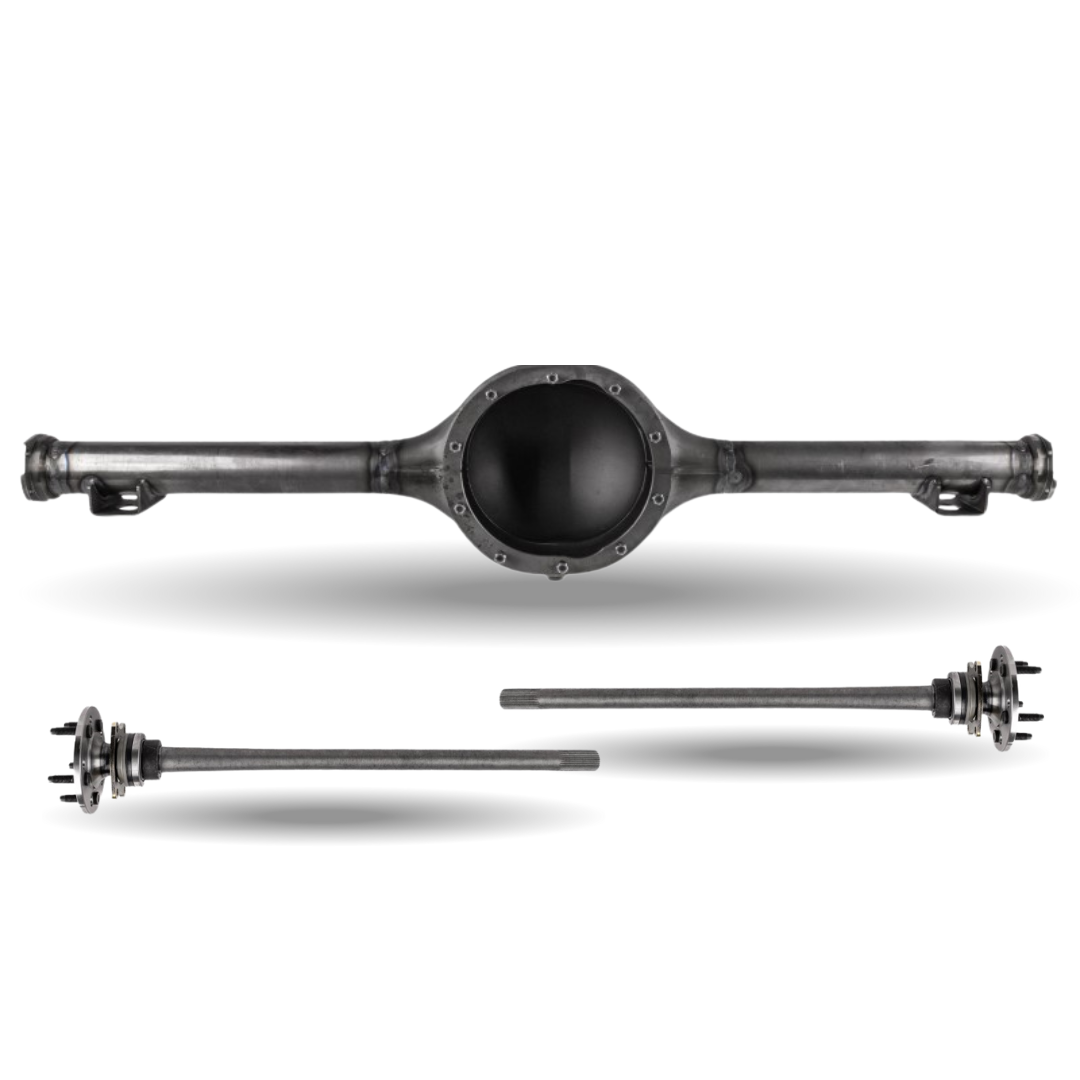

HK, HT & HG Holden 9 Inch Diff Housing With 31 Spline 1541H Billet Axles.
Affordable bolt-in 9″ diff for your HK, HT or HG Holden coupe, sedan, ute or panel van!
Diff centre and brake options available too!
This desirable 9 inch diff has been made to size and features factory style mounting brackets welded in place to factory spec. This produces a bolt-in 9 inch diff option for your car!
Details:

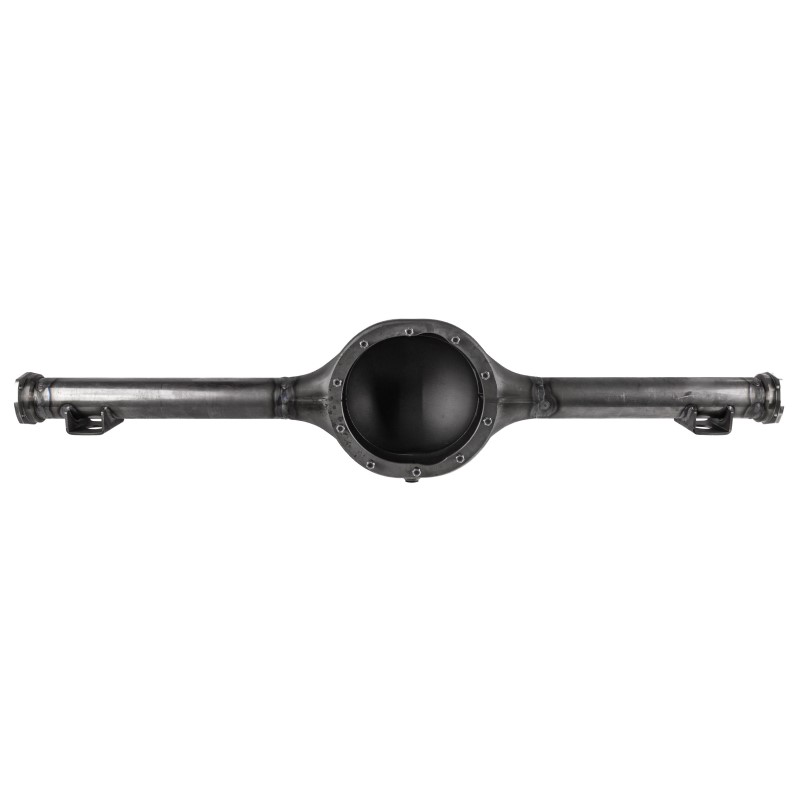

- Brand new 9 inch housing made to factory size with all new mounting brackets
- Axles manufactured from 1541H forged billet high strengh alloy steel
- Strong housing with 3/16 inch (5mm) walled tubes
- Axles supplied with bearings pressed on, with retainers
- Axles pre-drilled for 5 x 4.75″ Chev/HQ stud or Ford 5 x 4.5″ pattern with 1/2″ or 7/16″ studs supplied
- Professionally welded and straightened in jig
Housing uses “Big Ford-New Style” housing ends to suit most aftermarket 9 inch disc brake kits, and axles have 2-1/2 inch offset.
PLEASE NOTE: ALLOW UP TO 4 WEEKS PRODUCTION TIME AS THIS ITEM IS MADE TO ORDER.
WE CAN DO CUSTOM WIDTHS AS WELL – PLEASE ENQUIRE.
ITEM IS EXCLUDED FROM FREE SHIPPING DUE TO WEIGHT – BULKY HEAVY ITEM.
