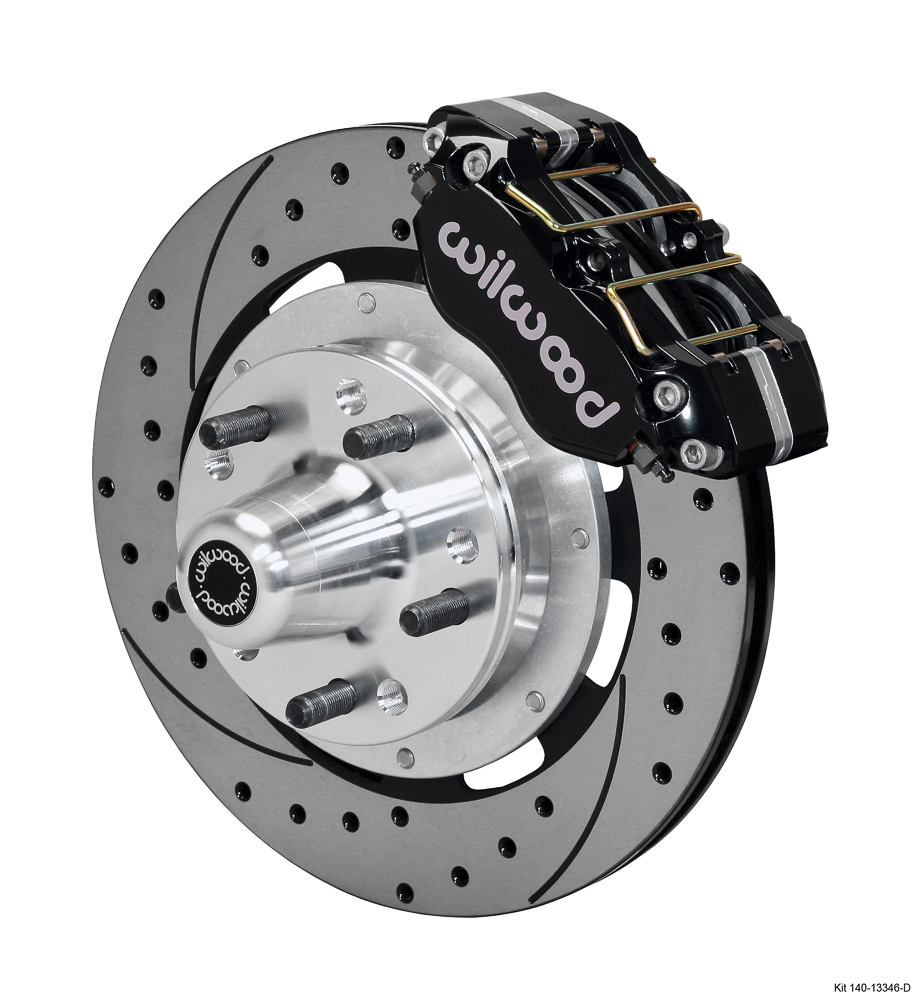

Wilwood 12.19″ Rotor, 4 Piston Dust Boot Caliper Front Disc Brake Kit (Hub), Mustang II Pro Spindle

SKU: 140-13346-D

$2,250.00

Suit Mustang II spindles
Four-piston calipers
Drilled and slotted rotor
High friction pads

Mustang II Front End
Art Morrison 47-53 Chevy Truck 9999 AME GT Sport Chassis (Wilwwod Pro Spindle)
Art Morrison 53-62 Corvette 9999 AME GT Sport Chassis (Wilwwod Pro Spindle)
Art Morrison 55-56 Ford F100 9999 AME GT Sport Chassis (Wilwwod Pro Spindle)
Art Morrison 55-57 Chevy (Auto) 9999 AME GT Sport Chassis (Wilwwod Pro Spindle)
Art Morrison 55-59 Chevy Truck 9999 AME GT Sport Chassis (Wilwwod Pro Spindle)
Art Morrison 59-64 Chevy (Full Size) 9999 AME GT Sport Chassis (Wilwwod Pro Spindle)
Art Morrison 63-67 Corvette 9999 AME GT Sport Chassis (Wilwwod Pro Spindle)
Roadster Shop Roadster Shop Spec Chassis 2016-9999 All
Wilwood ProSpindle 9999 Wilwood ProSpindle, Std. Height and 2″ Drop

More info

Payment options

Out of stock

Add to WishlistAlready In Wishlist

Join the waitlist to be emailed when this product becomes available

Enter your email address to join the waitlist for this product

Need help?

Ask a question about this item

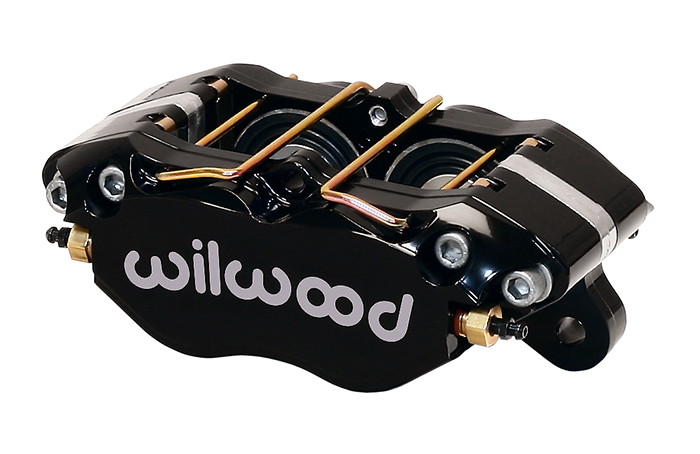

Calipers
Left Hand – Part No:	120-11482
Right Hand – Part No:	120-11482
Type:	Dynapro Dust-Boot
Finish Color:	Black Powder Coat
Piston Count:	4
Piston 1 Bore (in):	1.75
Piston 2 Bore (in):	1.75
Piston Area (In²):	4.80
Piston Type:	Aluminum
Mount Type:	Lug
Brake Pad Plate:	7812
Brake Pad Area (In²):	6.36
Brake Pad Volume (In³):	2.1
Pad Compound:	BP-10

Rotors
Left Hand – Part No:	160-7104-BK
Right Hand – Part No:	160-7103-BK
Type:	SRP Drilled Rotor
Style:	SRP Drilled & Slotted
Surface Finish:	Black Electro Coat
Material:	Iron
Outside Diameter (in):	12.19
Width (in):	0.81
Vane Count:	32 V
Design Type:	SRP-BLK
Bedded:	No
Dynamically Balanced:	No

Hubs
Hub – Part No:	270-10044
Type:	Hub – Vented Rotor Offset
Material:	Aluminum
Finish Color:	Bare
Mount Style:	Adapter
Bolt Circle 1:	5 x 4.50
Bolt Circle 2:	5 x 4.75
Bolt Circle 3:
Stud Diameter – BC 1:	1/2-20
Stud Diameter – BC 2:	1/2-20
Stud Diameter – BC 3:

Wilwood 12.19″ Rotor, 4 Piston Dust Boot Caliper Front Disc Brake Kit (Hub), Mustang II Pro Spindle

Payment options

Wilwood Dynapro Dust-Boot Pro Series Front Brake Kit (Hub).

Kit Summary
