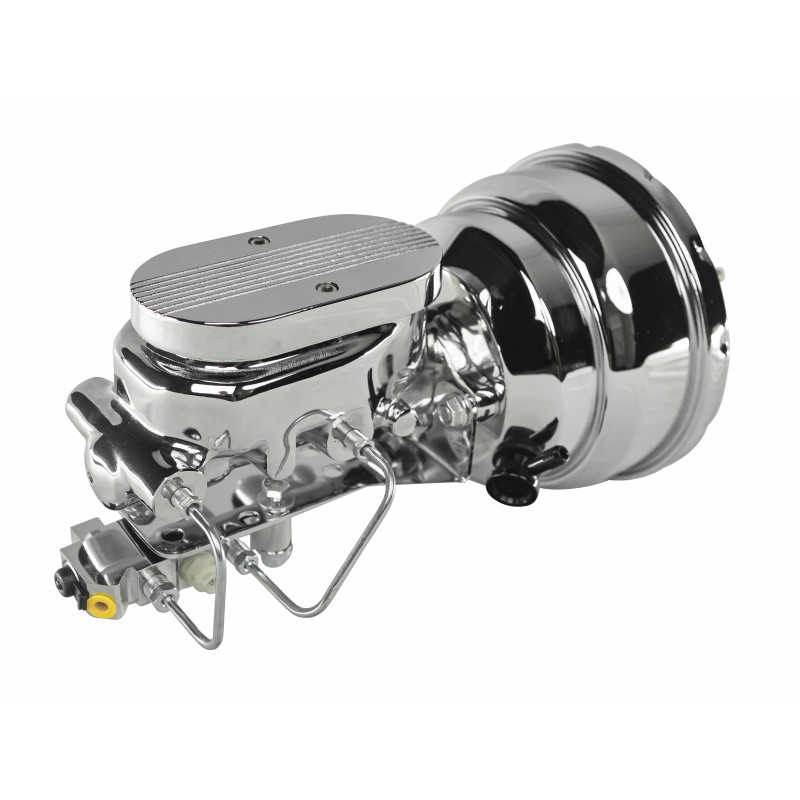

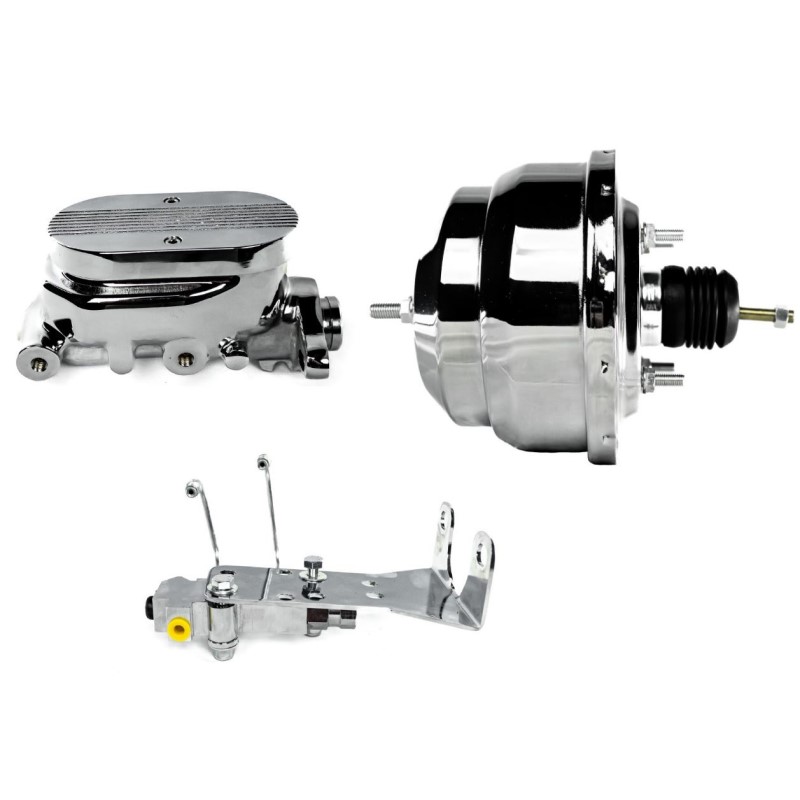

Chrome 8 Inch Dual Diaphragm Brake Booster & Master Cylinder Kit (Ball Milled) + Proportioning Valve Kit

~~Price range: $320.00 through $515.00~~
Price range: $256.00 through $412.00

Optional chrome proportioning valve kit

*** Select Front Disc/Rear Drum or 4 Wheel Disc ***

Our kits are supplied to the below general rule:

Disc Front & Drum Rear suits 1 inch Bore master cylinder and supplied with Disc/Drum proportioning valve kit (if purchased)
4 wheel Disc suits 1-1/8 inch bore master cylinder supplied with Disc/Disc proportioning valve kit (if purchased)

If you would like a different combination please contact sales team.

Payment options

ON SALE - 20% OFF HURRY WHILE STOCK LASTS!

Proportioning Valve Kit

Master Cylinder Bore Size

Clear

- +

Share Product:

Add to WishlistAlready In Wishlist

Need help?

Ask a question about this item

CONTACT US

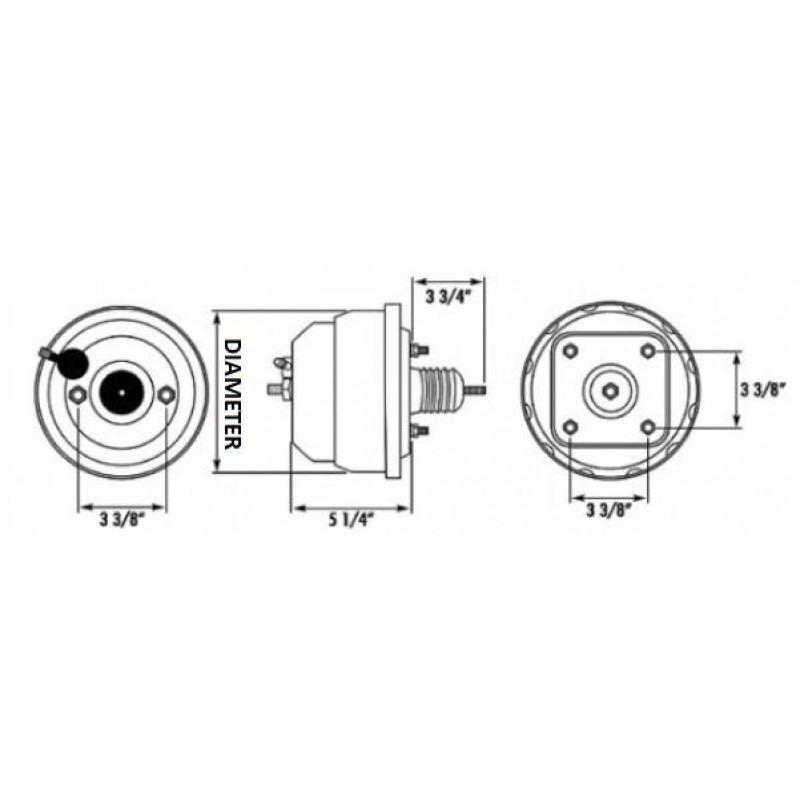

Brake Booster

Street Rod universal 8 inch dual diaphragm power brake booster.

Chrome finish
Suit hot rod, Ford, Chev, GM etc.
3-3/8 inch (86mm) square mount pattern with 5/16-20 studs
3-3/8 inch (86mm) master cylinder mount pattern with 3/8-24 studs
5.25″ overall thickness

Chrome 7 Inch 8 Inch Booster Dual Diaphragm Bb 7537c Bb 8537c 1

Master Cylinder

Chrome finish
1 inch or 1-1/8 inch bore with 9/16 & 1/2 inch ports on both sides
Blanking plugs included, for unused ports
Screw top lid with hex screws
3-3/8 inch center to center mounting holes for a truly universal application

Chrome Gm Style Master Cylinder Ball Milled Lid Arc16 Arc18 2 8x8

Proportioning Valve

GM style proportioning valve in chrome.

(2) 3/8-24″ ports for the front brakes
(1) 9/16-18″ port for the rear brakes
1 Wire Dash warning light connector

Includes brake warning light switch.

Chrome Proportioning Valve Pv2 Pv4 5 8x8

Proportioning Valve Bracket

Mounts your proportioning valve underneath your master cylinder for a clean look.
Bolts, washers and nuts to mount proportioning valve included.

Pv Bracket Chrome Pvb C 8x8

Hard Line Kit

Bottom mount lines to suit ARC Performance master cylinders and proportioning valves.

General Specs

Part # ARC-B8DC-MBMCx-PVxCKIT
Sold Quantity Kit

Brake Booster Specs

Part # BB-8537C
Brake Booster Type Vacuum Diaphragm Dual
Material Type Steel
Finish Chrome
Outside Diameter 8"
Overall Thickness 5.25"
Mounting Pattern 3-3/8" Square
Sold Quantity Each

Master Cylinder Specs

Part # - 1 " Bore ARC-16
Part # - 1-1/8" Bore ARC-18
Length From Firewall 8"
Mounting Holes 3-3/8"
Port Sizes 9/16-18 &12-20
Port Location Left & Right Hand Side
Finish Chrome
Sold Quantity Each

Proportioning Valve Specs

Part # - 2 Wheel Disc ARC-PV2C
Part # - 4 Wheel Disc ARC-PV4C
Finish Chrome
Inlet Quantity (1) 1/2"-20 & (1) 7/16"-24
Outlet Quantity (2) 3/8"-24 & (1) 9/16"-18
Sold Quantity Each
