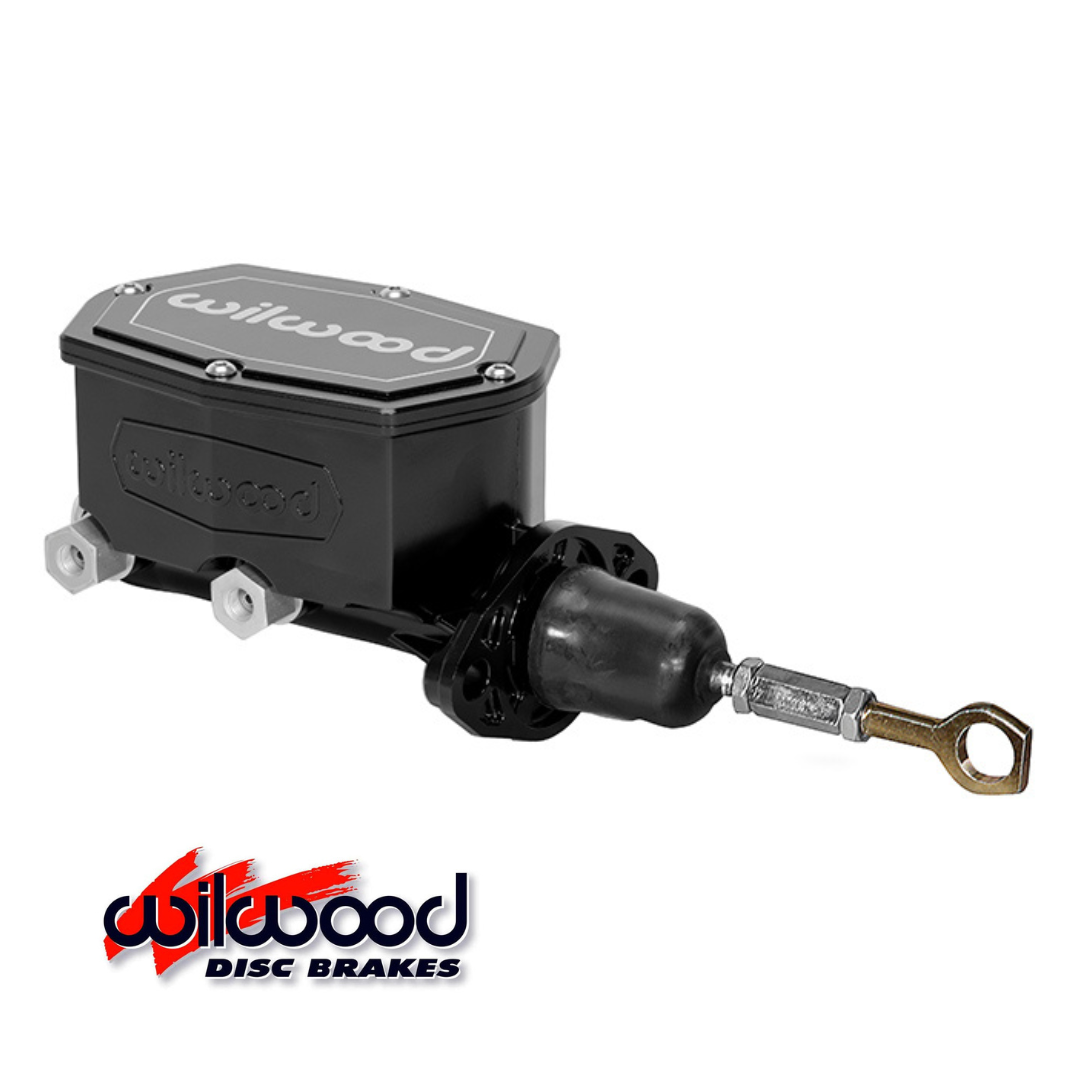

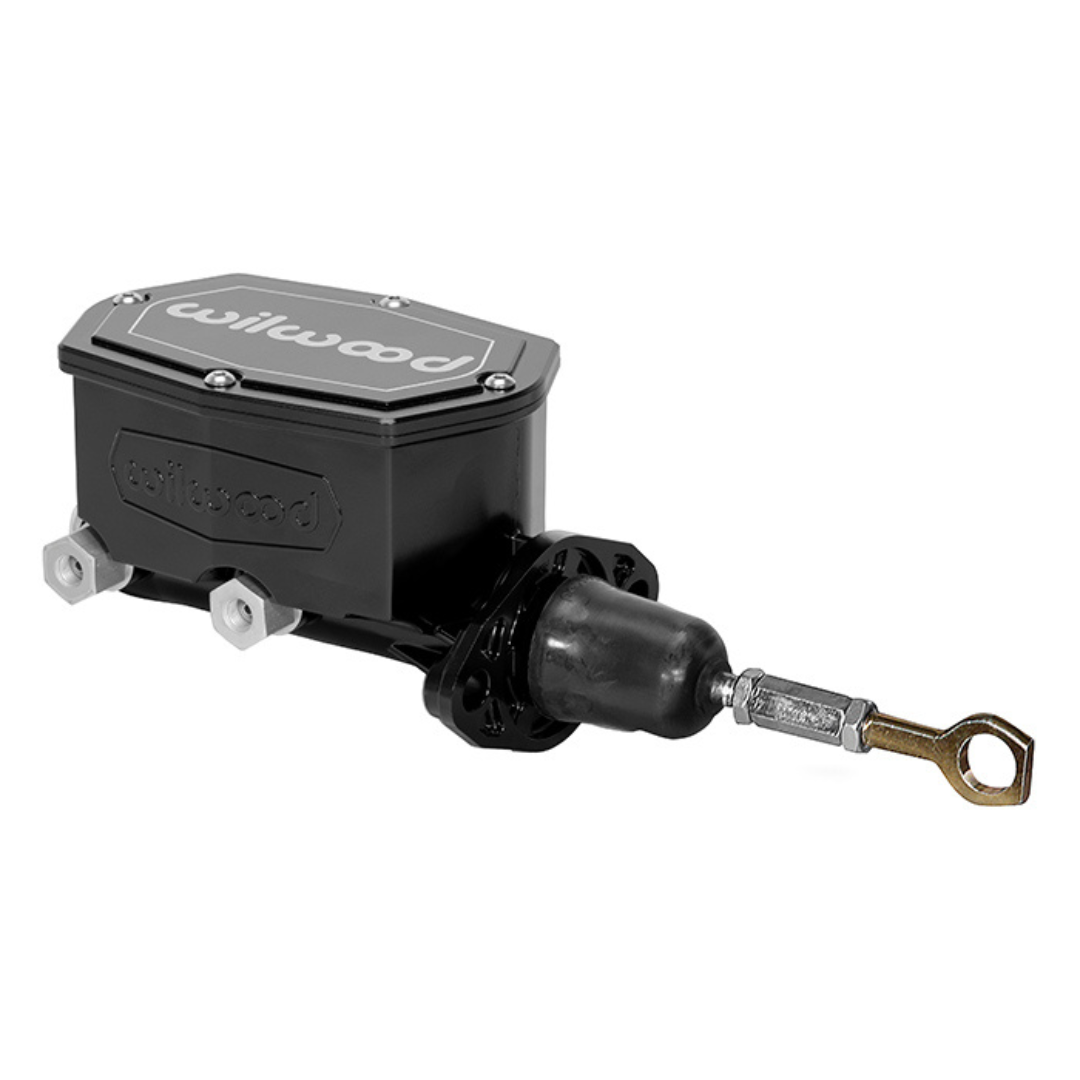

Wilwood Black Compact Tandem Master for Classic Mustang.
Wilwood’s Compact Tandem Master Cylinder for Mustangs comes with the correct pushrod.
- 7/8″ bore size
- Black powdercoat
These master cylinders are designed primarily for manual applications and include the correct pushrod for the factory 64-72 brake pedal.

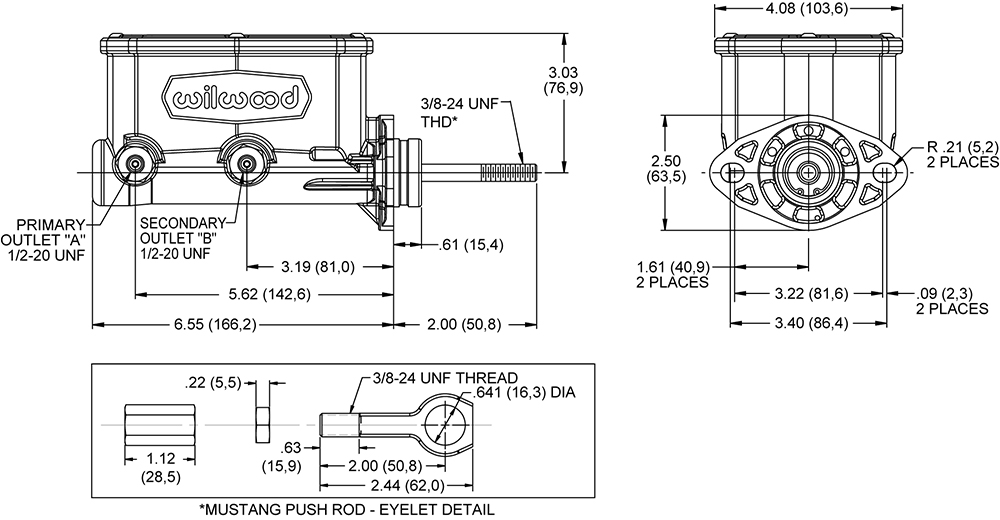

They’re designed for mount flanges from 3.22” to 3.40”, which match the 64-72 factory manual master cylinder mount, and offer fluid outlet ports on both sides of the bore.
The stroke is set at 1.10” with a volume ratio of 2:1 between the primary and secondary chambers.
Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders
